kHz 2.0µm Narrow Linewidth Single Frequency Fiber Laser
Industrial laser solutions, Fiber laser modules

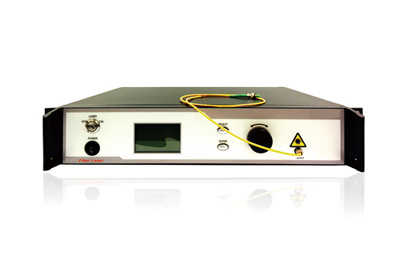

2.0µm Narrow Linewidth Single Frequency Fiber Laser, CKSF-R (Table-top)
The narrow linewidth single frequency fiber laser is a kind of low noise fiber lasers with output linewidth at kHz level, has ultra-low frequency noise and intensity noise, and the side-mode suppression ratio (SMSR) is over 50dB. The output power can reach 100mW, and higher output power can be provided per your specific needs. The wavelength tunable range is from 1900nm to 2050nm, e.g. 1908nm, 1940nm, 1950nm, 2004nm, 2050nm, etc.
Besides, high-intensity package is adopted to allow that the fiber laser is applicable to various environments, ensuring stable single longitudinal mode output and free of mode-hops even under changing environmental conditions such as temperature variance, vibrating and impacting, etc.
Description
Features
- Ultra-narrow linewidth
- Stable single-frequency & single polarization operation
- Free of mode-hops, no bursting noise
- Low phase noise and low relative intensity noise
- Flexible design, multiple wavelengths are optional
- Linear polarization output, high polarization extinction ratio (PER)
Applications
- Fiber optic sensing
- LiDAR
- Atom cooling and trapping
- Laser spectroscopy
- Frequency doubling
- Other scientific research tasks
Techwin is known as an expert company in developing and manufacturing of fiber lasers, fiber amplifiers and fiber sources. We also strive to provide our customers with custom fiber laser solutions suited for your applications. All of our high-power fiber lasers and amplifiers are manufactured following a rigorous quality management system. We are more than happy to share our laser technology with worldwide customers, and committed to earn the ongoing trust of our customers with our industrial fiber lasers coupled with expert support and service in various industrial segments.
Related products
-
Long Pulsed Single Frequency Fiber Laser (Polarization Maintaining)
Laser modules and components, Industrial fiber lasers
The long pulsed single frequency polarization-maintaining fiber laser is a modularized pulsed fiber laser designed for long-distance coherent Doppler wind LiDAR application. Based on eye-safe operating wavelength, the fiber laser is suited for long-pulse applications, can produce a single-mode linearly polarized output. Integrated with our particularly designed single frequency narrow linewidth seed laser source, the narrow linewidth can be down to 5kHz. Utilizing the cascaded acousto-optic modulator (AOM) to produce pulse signal with high turn-off ratio, the extinction ratio can exceed 100dB. -

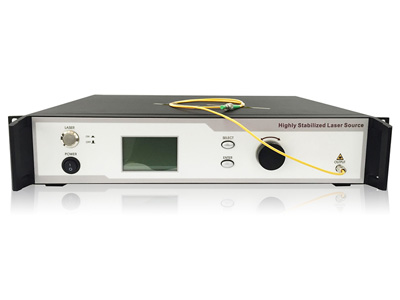

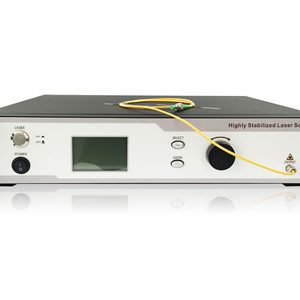

1.0µm Single Mode CW Lasers
